Best TRX-4M Upgrades for Serious Micro Rock Crawling

Check our list of best TRX-4M upgrades for serious micro rock crawling. Learn which tires, brass weights, servos, and brushless upgrades deliver real crawling performance gains.

The Traxxas TRX-4M stands out as the most capable micro-scale crawler. After repeatedly breaking stock components on demanding terrain, I learned which upgrades improve crawling performance, versus wasting money on unnecessary modifications.

In this guide, I will share with you the upgrades that will transform your TRX-4M Defender, TRX4M Bronco, or K10 from a casual trail runner into a beast.

After these modifications, you’ll have a serious rock-climbing machine in your hands. Let’s get into it.

Why Upgrade Your Traxxas TRX-4M?

Like many Traxxas RC cars and trucks, the stock TRX-4M comes ready to run (RTR) and handles casual trail driving well. But if you use it for serious rock crawling, you’ll notice its limitations. Demanding terrain exposes the performance ceiling of factory components.

That’s when you should look into upgrades for better crawling performance.

What Performance Upgrades Do You Need for TRX-4M?

I’ve learned through trial and error that not all upgrades deliver equal results. After running a Traxxas TRX-4M Ford Bronco 1:18 Crawler through increasingly difficult terrain, I found the five features that matter most.

What to Upgrade	Why It Matters	Expected Improvement
Tires	Stock rubber lacks grip on rocks	40-50% better traction
Servo	The factory servo struggles with steering torque	Eliminates binding on obstacles
Shocks	Oil-filled GTM shocks leak or wear out	Smoother articulation
Brass Weights	High center of gravity causes rollovers	Better stability on angles
Brushless System	Brushed motor overheats during climbs	More torque and speed control

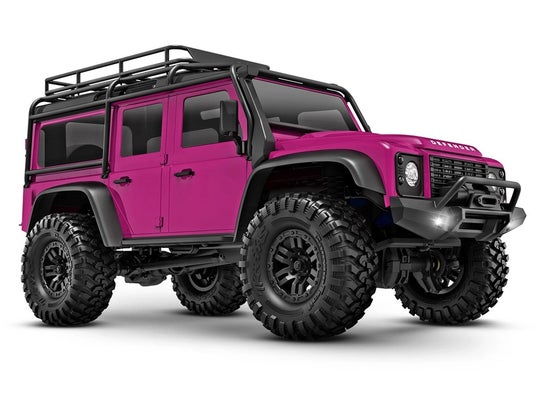

Even if you’re using Traxxas TRX-4M Land Rover Defender or Traxxas TRX-4M Chevrolet High Trail K10, you’ll still benefit from this same upgrade path. I will still recommend the same thing for those with the Traxxas TRX-4M Ford F150 High Trail that already comes with upgraded suspension.

Now that we’ve established upgrade priorities, let’s look at how weight distribution affects crawling performance.

How Does Adding Weight Improve TRX-4M Crawling Performance?

Adding weight lowers the center of gravity on micro crawlers. This prevents rollovers on steep angles and keeps tires pressed firmly against rocks. Consider these 2 upgrade areas that deliver the biggest stability improvements:

Brass Portal Upgrades

Putting brass steering blocks on my Traxxas TRX4M added over 70 grams to the chassis. That’s significant since weight mounted low prevents tipping on steep angles. You can also choose stainless steel, but brass portals outweigh steel by about 50%.

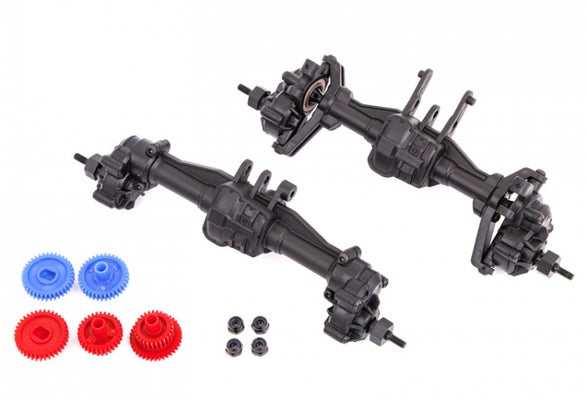

When installing them, I also upgraded to hardened axle shafts to handle the extra stress from brushless power. If you’re into serious rebuilds, get the Traxxas Portal Kit Front + Rear.

Weight Placement in Chassis and Wheels

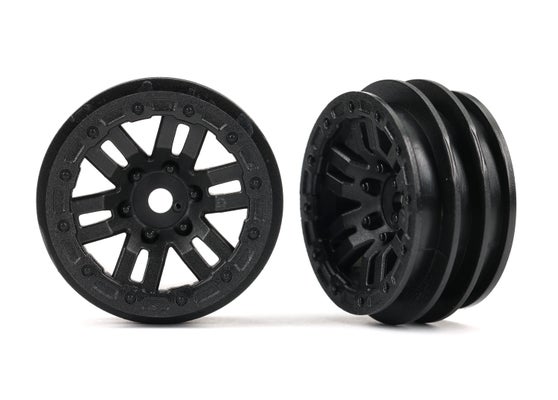

Beyond portals, I added brass to the wheels themselves. Beadlock rings and wheel weights on Traxxas Wheels 12-Spoke Black 1.0" keep tires planted on vertical climbs.

Then I installed brass diff housings and skid plates under the chassis frame. The trick is balancing front rear distribution because too much weight forward causes understeer. I aim for a slightly rearward weight bias, which helps the truck pull over obstacles.

Browse our TRX-4M parts and accessories and see the compatible brass options for you.

Which Tire Compound Delivers the Best TRX-4M Traction?

Tires make the biggest quick impact on crawling performance. The right rubber compound and tread pattern will have your Traxxas TRX-4M walking up surfaces that used to stop you in cold weather.

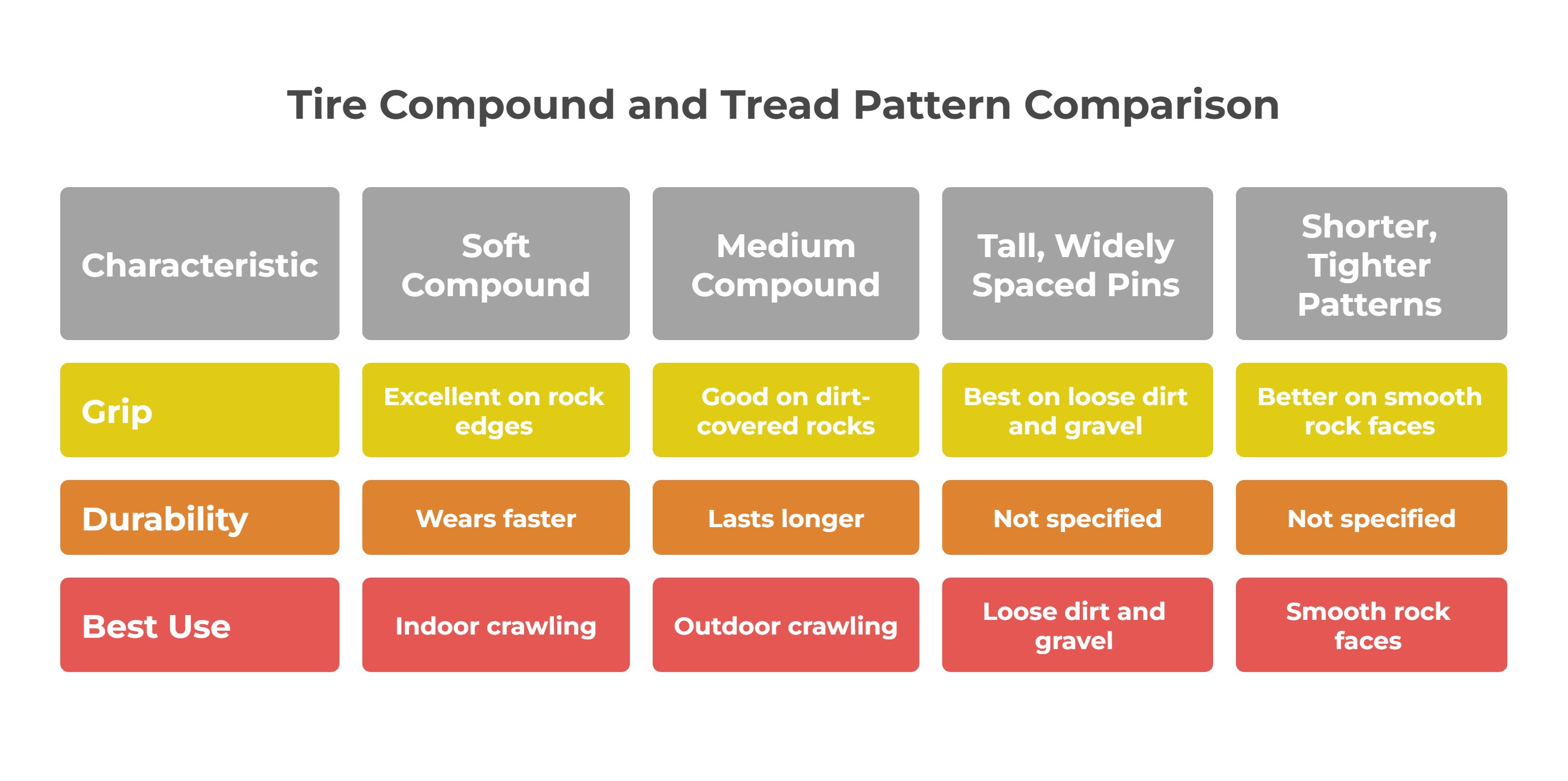

Soft vs Medium Compound for Rock Crawling

When it comes to off-road adventure, softer compounds grip better because they conform to tiny rock edges that medium compounds skip over. However, they wear faster, especially on concrete or pavement. Pro-Line and Louise RC features premium micro crawler tire options in multiple compounds for different conditions.

But for indoor crawling, soft tires excel since surfaces stay clean. Outdoors, medium compounds last longer and handle dirt-covered rocks reasonably well.

Tread Pattern Selection for Technical Terrain

I realized that tall, widely spaced pins work best on loose dirt and gravel. Shorter, tighter patterns grip smooth rock faces better. Many scale tires look great but perform poorly, and you want a pattern that balances realistic appearance with actual function.

Additionally, foam insert density matters more than most people realize. Softer inserts let tires conform around obstacles, while firm inserts maintain sidewall support. Finding the right balance takes experimentation with different foam combinations for your terrain.

What Drivetrain Upgrades Handle Brushless Power?

Brushless motors deliver 2-3 times more torque than brushed systems. However, increased power stresses stock components beyond their design limits. Let’s look at ways to prevent drivetrain failures during demanding crawling sessions.

Brushless Motor Systems for Improved Control

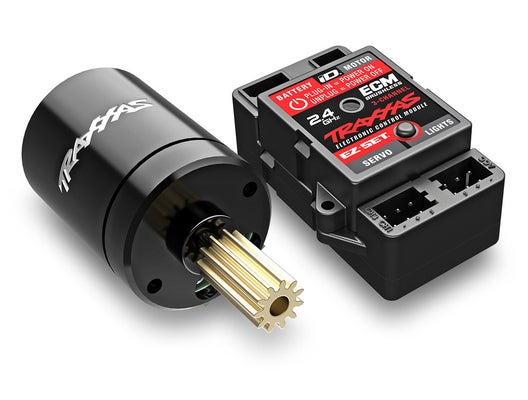

The Traxxas TRX-4M Brushless Power System offers plug-and-play installation at €108.82. Its 3350 KV FOC motor provides smooth control without the cogging you get from sensorless systems.

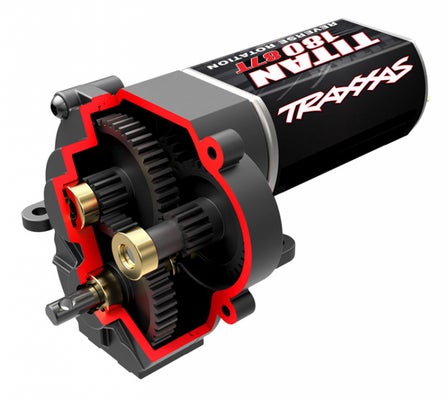

For crawling, I recommend KV ratings under 3000. Higher numbers spin faster but lose low-end torque. This Hobbywing QuicRun Mini24 ESC supports both brushless and brushed motors and offers adjustable BEC settings. You can pair brushless power with the Traxxas Crawl Gearing Transmission (40.3:1) for maximum torque or the Traxxas Speed Gearing Transmission (9.7:1) if you want faster runs.

Here’s a table of specifications:

Motor/ESC System	KV Rating	Torque Characteristic	Recommended Gearing	Crawling Suitability
Traxxas TRX-4M Brushless (FOC)	3350 KV	High torque, smooth control	40.3:1 crawl ratio	Excellent (plug-and-play)
Sensorless Brushless (Generic)	2800-3500 KV	Good torque, slight cogging at low speeds	35:1 minimum	Good (requires tuning)
Sensored Brushless (Aftermarket)	2200-2800 KV	Maximum low-end torque, zero cogging	40:1+ crawl ratio	Excellent (advanced users)
Stock Brushed Motor	Not specified	Moderate torque, overheats easily	40.3:1 stock	Fair (casual use only)

Hardened Steel Drivetrain Components

After breaking plastic diff gears (differential gears) twice, I switched to metal components. Steel gears handle brushless torque without stripping teeth during hard climbs, especially with 3S power.

Try upgrading to hardened driveshafts and CVD (constant-velocity) joints for smoother power delivery. Honestly, stock drivetrain parts work fine for casual crawling. But if you’re tackling demanding terrain, metal components prevent frustrating trail-side failures.

You’ll learn about this more from our guide on the best places to drive RC cars for terrain-specific recommendations.

What Steering Upgrades Enhance Technical Crawling?

Your TRX-4M needs responsive control when picking between rocks, and precise steering control is the key to successful lines on technical terrain. Stock steering components lack the strength and responsiveness needed for demanding crawls.

High-Torque Micro Servo Selection

I burned through two stock servos before upgrading to the Savöx SW-0250MG waterproof micro servo. You need at least 3 kg-cm of torque for reliable steering under load. Anything less binds to obstacles. After hitting puddles on outdoor trails, sealed electronics prevent frustrating failures mid-run.

Aluminum Steering Components and Bearings

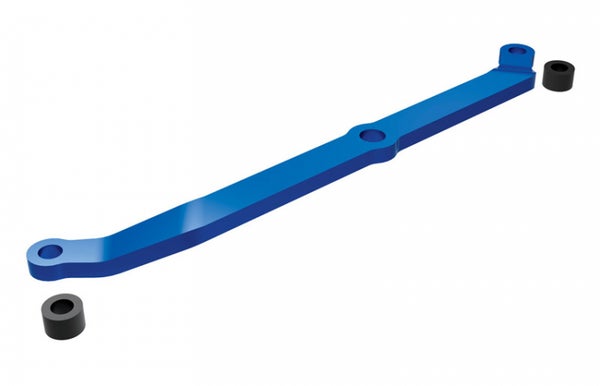

Plastic steering links flex under load and create a sloppy response. I switched to the Traxxas aluminum steering linkage made from 6061-T6 aluminum, which eliminated flex entirely. The included metal servo mount horn prevents stripping under high torque.

Next, I replaced bushings with sealed bearings throughout the steering assembly. I immediately noticed the steering feeling smoother and more precise. I know that metal components cost more upfront, but they withstand crashes that repeatedly destroy plastic parts.

FAQs on Traxxas TRX-4M Upgrades

What should I upgrade on my TRX-4M for better crawling?

Start with tires for immediate traction improvement, then upgrade to a high-torque servo. Add brass portal covers and wheel weights next for stability. Finally, consider brushless power and hardened drivetrain components if you regularly tackle extremely demanding terrain.

Can I use a brushless motor on the stock TRX-4M drivetrain?

Technically, yes, but you're asking for trouble. The stock plastic drivetrain wasn't built to handle the extra power from a brushless setup. You'll strip gears or snap axles quickly, especially if you're aggressive with the throttle. Ensure to get reinforced drivetrain parts for reliability.

How much weight should I add to my TRX-4M?

Add 100-150 grams total for noticeable stability gains. Mount brass portal covers (70+ grams) and wheel weights low in the chassis. Too much weight overworks the motor and reduces battery life. Balance front-to-rear distribution with slightly more weight toward the rear axle.

Are aftermarket parts compatible with the Traxxas TRX-4M?

Yes, most quality aftermarket parts designed for 1:18 crawlers fit the TRX-4M platform. Check the specifications carefully, as some components require minor modifications. Genuine Traxxas parts guarantee perfect fitment. Use our parts finder tool above to verify compatibility before purchasing any aftermarket upgrades.
